Introduction: Critical Clutches K2 and K3

The K2 and K3 clutches in the ZF 4 BP 230 transmission are fundamental for engaging 2nd and 3rd forward and reverse gears. High operational stress makes the K2 and K3 clutch packs susceptible to wear. The required repair kit for these crucial couplings is 4681.298.015.

This procurement guide from Tianjin XiaoHang Construction Machinery Co., Ltd. focuses on sourcing the K2/K3 Repair Kit 4681.298.015 and ensuring quality control for these vital components.

Section 1: K2 and K3 Clutch Engagement

The Role in Speed and Direction

The K2 clutch is essential for 2nd gear (KV/K2 forward, KR/K2 reverse), and K3 is used for 3rd gear (KV/K3 forward, KR/K3 reverse) and also 4th gear (K4/K3 forward). Their failure directly compromises machine usability. The nominal pressure for these clutch packs is 16+2 bar.

Section 2: Sourcing Complete and Verified Repair Kits

The Material Number 4681.298.015

The repair kit material number 4681.298.015 covers the repair of these high-duty components. XiaoHang Machinery Co.’s 20 years of repair expertise ensures our supplied kits include:

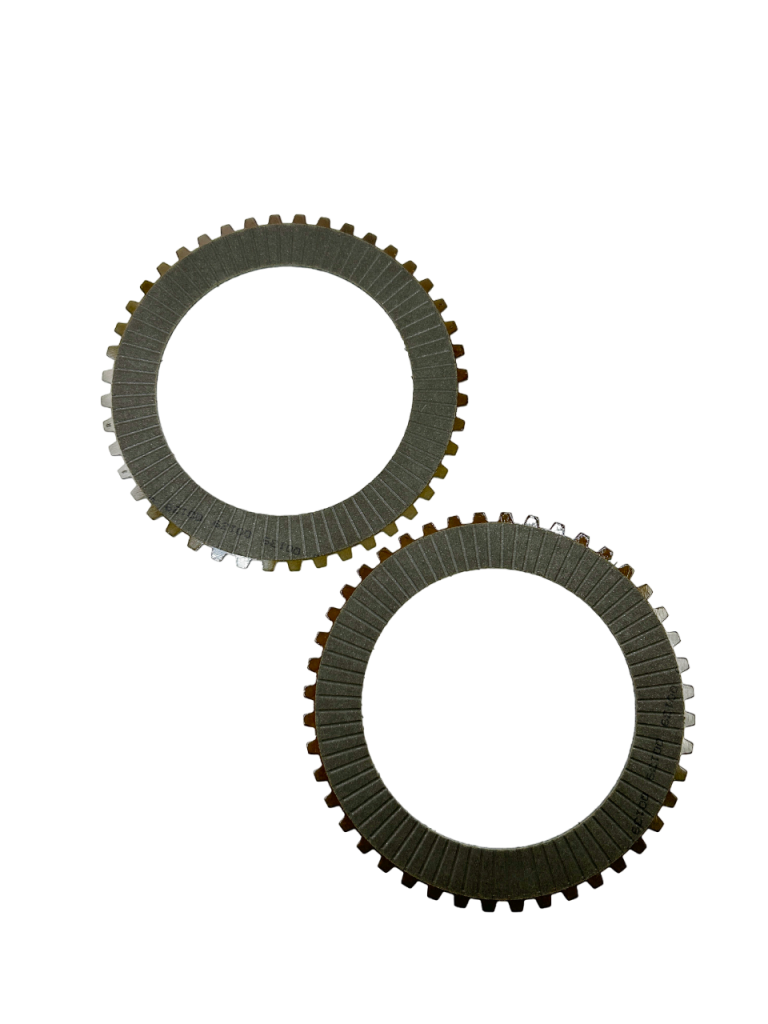

1. Verified Friction Discs: Engineered for high thermal stability.
2. Complete Sealing Elements: Including O-rings (e.g., 64X3 and 120X3 for the piston) to guarantee optimal hydraulic engagement pressure.

Section 3: Fast Supply for Multi-Clutch Repairs

Mitigating Downtime on Overhauls

Overhauling K2 and K3 requires numerous specialized parts. XiaoHang Machinery Co. utilizes its efficient Chinese supply chain to offer fast lead times and competitive pricing on the complete 4681.298.015 repair kit, minimizing the total repair cycle time.

Conclusion: Guarantee 2nd and 3rd Gear Performance

For the ZF 4 BP 230 K2/K3 Repair Kit 4681.298.015, rely on the technical authority and quick supply of Tianjin XiaoHang Construction Machinery Co., Ltd.

Introduction: What Your Transmission is Telling You

The ZF 4BP230 transmission’s electronic control unit (TCU) monitors for faults and reports them via codes on the display. Understanding these codes is the first step to fast, accurate repair. As a 20-year technical expert, Tianjin XiaoHang Construction Machinery Co., Ltd. explains the most common fault codes.

Section 1: The Most Common Fault Codes

A Guide for Technicians

If your machine shows a fault, check this list:

Code “BA” (Filter Clogged): This code indicates that the transmission fine filter is clogged or the sensor circuit has failed. This is a critical warning; you must replace the filter immediately (e.g., Part No. [0501.298.690]) to prevent oil starvation and pump damage.

Codes “B1” through “B6” (Clutch Slippage): These codes indicate that a specific clutch pack is slipping. For example:

B1: Clutch K1 slippage

B2: Clutch K2 slippage

B3: Clutch K3 slippage

B4: Clutch K4 slippage

B5: Clutch KV (Forward) slippage

B6: Clutch KR (Reverse) slippage

Code “3E” (Speed Sensor Failure): This indicates the output speed sensor signal has failed. This requires checking the sensor (e.g., [0501.328.675]) and its wiring.

Section 2: Sourcing the Solution with XiaoHang Machinery Co.

From Code to Component, Fast

XiaoHang Machinery Co., Ltd. turns diagnostics into solutions.

Fault “BA”? We provide fast lead times on verified ZF filter kits.

Fault “B1-B6”? We stock the complete clutch repair kits (like [4681.298.014] for K1) needed for the overhaul.

Fault “3E”? We supply the correct speed sensors.

Our 20 years of technical support means we can help you confirm the fault code and ship the right part the first time, leveraging our competitive pricing and strong inventory.

Conclusion: The Partner That Speaks ZF

Don’t just read the code, solve it. Contact XiaoHang Machinery Co. for the technical expertise and rapid parts supply to fix any ZF fault.

Introduction: The Precision of Hydraulic Control

The ZF 4BP230 transmission achieves its smooth shifting by using 6 proportional solenoid valves (Y1-Y6)⁴². These valves, located in the HCU (Hydraulic Control Unit), precisely control the 16+2 bar system pressure to engage the 6 clutch packs. Failure of a single solenoid leads to harsh shifting or complete gear loss.

As a 20-year technical expert in ZF transmission repair, Tianjin XiaoHang Construction Machinery Co., Ltd. provides this guide for diagnosing and sourcing these critical electronic parts.

Section 1: Technical Specifications and Diagnosis

Key Data for Technicians

Our 20 years of repair data confirm these key specifications for the 4BP230 solenoids:

• Type: Proportional Solenoid Valve
• Operating Voltage: 24 V
• Resistance (at 20°C): 19 $\Omega$ (Ohms)
• Operating Current: 100 – 500 mA

A technician can diagnose a faulty solenoid by checking its resistance. If the value is far from 19 $\Omega$, the solenoid is damaged and must be replaced⁴⁷.

Section 2: Sourcing Verified Solenoid Valves

The XiaoHang Quality Guarantee

The 4BP230 HCU (part of assembly [4660.159.024]) requires high-quality replacement solenoids. XiaoHang Machinery Co., Ltd. supplies verified proportional solenoid valves that meet the exact 19 $\Omega$resistance and current specifications.

• Fast Lead Times: We maintain a strong inventory of these high-demand electronic components.
• Cost Efficiency: Our China-based supply chain ensures competitive pricing for these high-tech valves.

Conclusion: Restore Your Shifting Quality

Don’t let a faulty solenoid stop your machine. Trust Tianjin XiaoHang Construction Machinery Co., Ltd. for verified 4BP230 proportional solenoids and the technical data to support your diagnosis.

Contact our International Sales Team today for immediate quotes and technical support.

ZF 4BP230 Speed Sensor Failure: A Sourcing Guide for Engine, Turbine, and Output Sensors

Introduction: The Electronic Feedback Loop

The ZF 4BP230 transmission relies on a set of speed sensors to provide crucial data to the TCU (Electronic Control Unit) for smooth shifting and fault detection³⁴. Failure of these sensors is a common fault point that can halt a machine.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd. helps you accurately source the correct replacement speed sensors for your 4BP230.

Section 1: The Four Critical Speed Sensors

Identifying the Correct Sensor

The 4BP230 system uses four key sensors to monitor speeds:

1. Engine Speed Sensor (B1)
2. Turbine Rotary Sensor (B2)
3. Middle Gear Speed Sensor (B3)
4. Output Speed Sensor (B4)

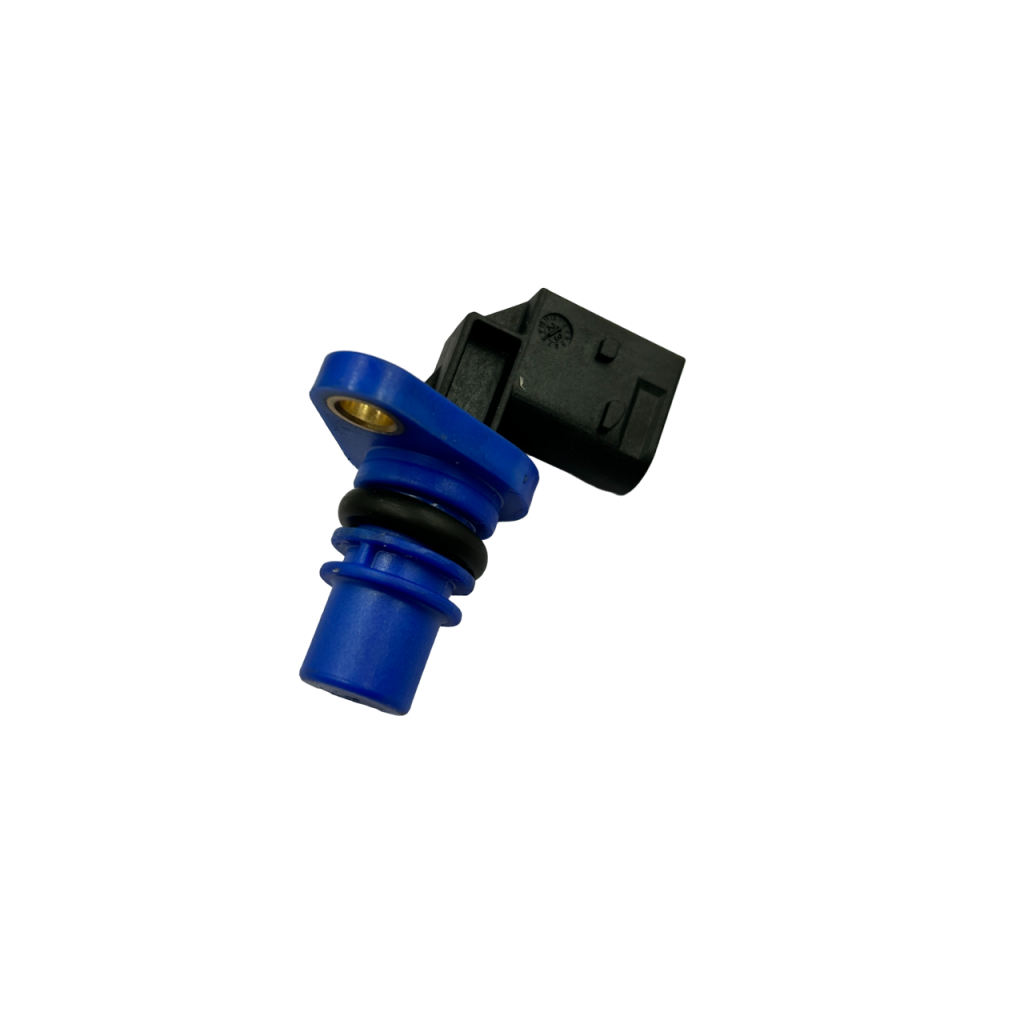

These are often inductive sensors, and for specific BOMs like 4681.084.018, the part number is [0501.328.675].

Section 2: Technical Specifications and Testing

Expert Verification

Our 20 years of technical expertise confirms that these magnetic-electric (inductive) sensors should have a resistance at 20°C of approximately 1050 $\Omega$ (Ohms) $\pm$10%⁴¹. When troubleshooting, a technician can test the sensor’s resistance to confirm failure before ordering.

Section 3: Sourcing Verified Electronic Components

The XiaoHang Advantage

XiaoHang Machinery Co., Ltd. understands the critical nature of electronic sensors. We supply high-quality, verified replacement sensors (like [0501.328.675]) that meet exact ZF specifications.

• Fast Lead Times: Our strong inventory in China ensures fast lead times for these critical electronic parts.
• Technical Support: Our 20-year experienced team can provide the technical data (like resistance values) to help your technicians diagnose the fault correctly before you place an order.

Conclusion: Restore Your Electronic Feedback

Trust Tianjin XiaoHang Construction Machinery Co., Ltd. for verified ZF 4BP230 speed sensors and the expert support to back them up.

Contact our International Sales Team today for technical data and rapid sourcing.

Servicing CASE Construction Equipment: Sourcing ZF Transmission Spares for Loaders

Introduction: The CASE and ZF Partnership

Many CASE Construction wheel loaders are trusted globally for their performance, which often relies on the durability of an integrated ZF transmission. For distributors and service technicians, identifying the correct ZF model within a CASE machine is the first step to successful parts procurement.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd. helps you identify and source the correct ZF spares for your CASE equipment, leveraging our 20 years of industry experience.

Section 1: Identifying the ZF Model in Your CASE Loader

Look for the Nameplate

While CASE has its own part numbering system, the transmission itself will have a ZF nameplate (data plate). This plate contains the two most important pieces of information for sourcing:

• Type (Model): e.g., 4BP230, 4WG210, etc.
• Parts List No. (BOM): e.g., 4681.084.018.

You must use these ZF numbers, not the CASE part number, to guarantee accurate aftermarket sourcing.

Section 2: Common Spares for ZF-Equipped CASE Machines

High-Wear Items for Loader Applications

Based on our 20 years of repair data, loaders (like the CASE model shown in ZF training) put heavy stress on:

• Torque Converters: Sourcing the correct unit (e.g., [0501.009.431] for a 4BP230) is vital.
• Clutch Packs (K1-K4, KV, KR): Constant forward-reverse shifting causes wear.
• Sensors and Solenoids: Electronic controls are critical for smooth operation.

Section 3: The XiaoHang Advantage for OEM Brands

China Supply Chain Speed for Global Brands

XiaoHang Machinery Co. is a premier supplier based in China, offering a significant advantage for sourcing ZF parts used in major OEMs like CASE. We provide:

• Technical Expertise: We verify your ZF BOM number to ensure the parts match your CASE application.
• Fast Lead Times & Competitive Price: Our efficient Chinese manufacturing infrastructure and strong inventory mean you get your parts faster and at a better price.

Conclusion: Your Expert Partner for CASE/ZF Spares

Trust Tianjin XiaoHang Construction Machinery Co., Ltd. to be your technical partner for sourcing ZF transmission parts for CASE machinery.

Contact our International Sales Team today for technical support and fast, competitive quotes.

Complete Sourcing Guide for ZF 4BP230 (BOM 4681.084.018) Clutch Repair Kits

Introduction: Sourcing by Bill of Material (BOM)

Procuring parts for a ZF 4BP230 transmission requires the exact Bill of Material (BOM) number, also known as the “Parts List No.” on the nameplate. For BOM 4681.084.018, ZF provides specific repair kits for each clutch assembly.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd. details the official repair kit part numbers for this specific 4BP230 BOM, ensuring you order the correct overhaul components.

Section 1: Identifying the Correct Clutch Repair Kit Part Numbers

A Checklist for Procurement Managers

The 4BP230 (4-speed) transmission utilizes 6 clutches (KV, KR, K1, K2, K3, K4) to achieve its gears. When overhauling BOM 4681.084.018, you must order the specific kits:

Clutch K1: Order Repair Kit [4681.298.014] or [4681.298.018].

Clutch K2: Order Repair Kit [4681.298.015] or [4681.298.019].

Clutch K3: Order Repair Kit [4681.298.015] or [4681.298.019].

Clutch K4: Order Repair Kit [4681.298.016] or [4681.298.020].

Clutch KV (Forward): Order Repair Kit [4681.298.017] or [4681.298.021].

Clutch KR (Reverse): Order Repair Kit [4681.298.017] or [4681.298.021].

Section 2: The XiaoHang Advantage: Complete and Verified Kits

More Than Just a Part Number

XiaoHang Machinery Co., Ltd. does more than just match numbers. With our 20 years of repair expertise, we ensure that the kits we supply are complete, high-quality, and match your BOM. We provide high-spec friction discs and seals that meet or exceed the performance required for the 16+2 bar system pressure.

Section 3: Rapid Sourcing for Full Overhauls

Get All Kits from One Source

Our strong inventory in China allows you to source all necessary repair kits—from K1 to KR—from a single, reliable partner. This simplifies your procurement, guarantees compatibility, and offers fast lead times at a competitive price point.

Conclusion: Source by BOM, Trust by Expertise

Stop searching for individual components. Order the complete, correct repair kits for your 4BP230 BOM [4681.084.018] from Tianjin XiaoHang Construction Machinery Co., Ltd.

Contact our International Sales Team today to confirm your BOM and receive an immediate quote.

Beyond the Part Number: The Distributor’s Guide to Using ZF Technical Documentation and Parts Catalogs

Introduction: The Knowledge Advantage

Effective ZF parts procurement relies not only on the physical part but on mastering the technical documentation: the Illustrated Parts Catalogs (IPC) and service bulletins. This knowledge ensures accurate cross-referencing and provides vital installation context.

This guide from XiaoHang Machinery Co. helps distributors understand how to leverage technical documentation to minimize sourcing errors.

Section 1: Mastering the IPC and BOM

The IPC is Your Map

The Illustrated Parts Catalog (IPC) shows exploded views and part breakdowns. Understanding the IPC alongside the BOM number is the only way to confirm if a specific component has been superseded or revised.

Section 2: XiaoHang’s Technical Support Philosophy

Expertise as a Value-Add

Our 20 years of experience means we use this documentation daily. We provide technical support that helps your team interpret complex diagrams, preventing installation errors and guaranteeing part compatibility.

Conclusion: Procure with Knowledge

Elevate your service with knowledge. Partner with XiaoHang Machinery Co., where every part is supplied with the backing of our technical documentation expertise.
