ZF 4BP230 HCU Repair: Sourcing Internal Valve Block Components (Pressure Regulator 0501.335.152)

Introduction: Deep Repair of the Hydraulic Control Unit (HCU)

When a ZF 4BP230 suffers from hydraulic control issues, the fault often lies within the Valve Block (part of Assembly 4660.159.024). Instead of replacing the entire expensive assembly, a skilled technician can repair it by replacing the internal components.

As a 20-year technical expert, Tianjin XiaoHang Construction Machinery Co., Ltd. supplies the high-precision internal components required for HCU overhaul.

Section 1: Key Internal Components for HCU Repair

Sourcing Beyond the Solenoid

The HCU contains numerous precision parts that wear over time:

1. PRESSURE REGULATOR 0501.335.152: (Quantity 6) These critical valves work with the solenoids to modulate pressure.
2. CONTROL PISTON 4660.359.015: (Quantity 6)
3. COMPRESSION SPRING 0732.300.232: (Quantity 6)
4. O-RING 0634.306.522: (Quantity 6, size 11X2)

Section 2: The XiaoHang Advantage: Deep Component Knowledge

We Supply the “Small Parts” That Matter

Many suppliers only sell the complete, high-cost HCU assembly. XiaoHang Machinery Co. leverages its 20 years of repair expertise to stock and supply the individual, high-precision internal components. This allows for more cost-effective repairs for you and your customers.

Section 3: Fast Lead Times on Precision Parts

Our strong inventory and China-based supply chain allow us to provide fast lead times and competitive pricing on these specialized internal valve parts, which are often hard to source.

Conclusion: Repair, Don’t Just Replace

Enable more cost-effective HCU repairs by sourcing your internal valve block components from Tianjin XiaoHang Construction Machinery Co., Ltd.

Sourcing ZF 4BP230 Power Take-Off (PTO) Components: Pump Shaft 4681.354.001

Introduction: The Auxiliary Power Source

The Power Take-Off (PTO) unit on a ZF 4BP230 (Assembly 4681.154.001) is a critical feature, allowing the machine to power auxiliary hydraulic pumps (e.g., for steering or implements). Failure of the PTO drive shaft can halt all auxiliary functions.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd. focuses on the procurement of key PTO internal components.

Section 1: Key PTO Components for Sourcing

Inside the PTO Assembly

The 4BP230 PTO is a high-torque component. When servicing this assembly, key replacement parts include:

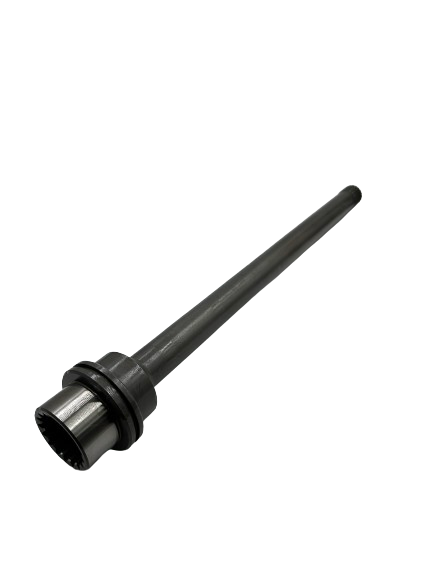

1. PUMP SHAFT 4681.354.001: The main drive shaft for the auxiliary pump.
2. BALL BEARING 0735.372.298: The primary bearing supporting the shaft.
3. RETAINING RING 0630.502.040 and R-RING 0634.402.557: Critical for holding the assembly.
4. O-RING 0634.304.616: The main seal (130X3) for the cover plate.

Section 2: Sourcing for High-Torque Applications

Quality Assurance on Shafts and Bearings

The PUMP SHAFT 4681.354.001 must be made from high-strength, properly hardened steel to withstand continuous torque. XiaoHang Machinery Co.’s 20 years of expertise ensures that the PTO components we supply meet these rigorous metallurgical standards, preventing premature spline wear or shaft failure.

Section 3: The XiaoHang Advantage: Specialized Inventory

Fast Sourcing for Specialized Parts

PTO components are specialized and can be hard to find. XiaoHang Machinery Co. leverages its strong inventory in China to provide fast lead times and competitive pricing on the entire PTO assembly, from the PUMP SHAFT to the COVER PLATE 4681.354.013.

Conclusion: Restore Your Auxiliary Power

For verified, high-strength ZF 4BP230 PTO components, trust the technical authority and rapid supply of Tianjin XiaoHang Construction Machinery Co., Ltd.

Introduction: The Driver’s Interface

The Range Selector (or “Shifter”) is the driver’s primary interface with the transmission. In many ZF systems, this is a sophisticated electronic component that sends CAN-bus signals to the TCU. When it fails, the machine cannot be put into gear.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd. focuses on sourcing the replacement RANGE SELECTOR 0501.219.677, listed under the “Loose Parts” assembly (4681.183.010) for the 4BP230.

Section 1: Understanding the Component

Part Number 0501.219.677

The RANGE SELECTOR 0501.219.677 is often a DW-3 style shifter. It communicates shift commands (Forward, Neutral, Reverse, and gear selection 1-4) digitally to the TCU. Failure is often due to internal wear on the contacts or damage to the electronic components.

Section 2: Sourcing a Reliable Replacement Shifter

Why Quality Matters

Using a low-quality replacement shifter can send intermittent or incorrect signals, leading to erratic shifting or fault codes. XiaoHang Machinery Co., Ltd. supplies high-quality, verified range selectors that guarantee compatibility and reliable communication with the ZF TCU.

Section 3: The XiaoHang Advantage: Complete Electronic Solutions

Your Partner for All Electronic Spares

Our 20 years of experience means we are experts in the entire ZF electronic system. We provide:

• Verified Parts: We supply the correct RANGE SELECTOR 0501.219.677 for your application.
• Fast Supply: Our China-based inventory ensures fast lead times for these critical cab components.
• Technical Support: We can help you diagnose if the fault is in the shifter or the wiring.

Conclusion: Restore Control to Your Machine

For reliable ZF shifters and electronic components, trust the technical expertise and rapid supply of Tianjin XiaoHang Construction Machinery Co., Ltd.

Introduction: Understanding Clutch Slippage Codes

When a ZF 4BP230 transmission registers a fault, it is often a “B hex” code. According to ZF technical data, the ‘B hex’ prefix indicates a “Transmission error, Clutch error”. These are critical codes that almost always point to mechanical or hydraulic failure.

As a 20-year technical service expert, Tianjin XiaoHang Construction Machinery Co., Ltd. explains what these codes mean and how to source the correct parts to fix them.

Section 1: Decoding the ‘B’ Fault Codes

A Guide for Technicians

If your display shows a “B” code, it is warning of clutch slippage. The subsequent number identifies which clutch is failing:

• B1: Clutch K1 slippage
• B2: Clutch K2 slippage
• B3: Clutch K3 slippage
• B4: Clutch K4 slippage
• B5: Clutch KV (Forward) slippage
• B6: Clutch KR (Reverse) slippage

Section 2: The Cause and the Solution

Why This Happens

These codes are triggered when the TCU detects that the input speed (e.g., Turbine Sensor B2) and the output speed (e.g., Output Sensor B4) do not match the expected ratio for the engaged gear. This means the clutch pack is slipping, either from low hydraulic pressure (16+2 bar) or, more commonly, worn-out friction discs.

• The Solution: The only permanent fix is to overhaul the specific clutch pack by replacing the clutch repair kit.

Section 3: XiaoHang Machinery Co. – Your Fault Code Partner

From Code to Component, Fast

Tianjin XiaoHang Construction Machinery Co., Ltd. turns diagnostics into solutions.

• Fault “B5” (KV Slippage)? We supply the Repair Kit 4681.298.017.
• Fault “B1” (K1 Slippage)? We supply the Repair Kit 4681.298.014.
• Our 20 years of technical support and strong inventory ensure you get the right kit, fast, at a competitive price.

Conclusion: The Partner That Solves ZF Codes

Don’t just read the code, solve it. Contact XiaoHang Machinery Co. for the technical expertise and rapid parts supply to fix any ZF clutch fault.

Expert Sourcing for XCMG Wheel Loaders: Identifying and Procuring the Correct ZF Transmission Spares

Introduction: The Power Behind XCMG

XCMG is a global leader in construction machinery, utilizing ZF’s robust transmission technology (including the WG and Basicpower series) to ensure the power and reliability of their popular wheel loaders. Servicing these machines requires a supplier who can navigate the wide variety of ZF configurations used by XCMG.

This guide from Tianjin XiaoHang Construction Machinery Co., Ltd., a 20-year veteran in the Chinese OEM market, explains how to source parts for XCMG loaders accurately.

Section 1: The Importance of the BOM Number

Why XCMG Configurations Vary

XCMG utilizes multiple ZF transmission models across its product lines. A single loader series might offer different transmission options. Therefore, relying only on the XCMG machine model is not enough. To source correctly, you must retrieve the ZF Parts List No. (BOM) from the transmission’s own data plate.

Section 2: Common ZF Components for XCMG

High-Demand Parts for Loader Duty Cycles

Based on our 20 years of repair data supporting Chinese OEMs, XCMG loaders place high demand on:

1. Clutch Packs: Specifically the forward/reverse clutches (e.g., KV/KR or CF/CR) due to constant Y-cycle loading.
2. Sensors and Solenoids: For shifting control.
3. Filters and Seals: Essential for maintenance in dusty construction environments.

Section 3: XiaoHang’s China-Based Sourcing Advantage

The Supplier with Local Knowledge

Tianjin XiaoHang Construction Machinery Co., Ltd. is your ideal partner for XCMG spares.

• Technical Verification: We have the expertise to cross-reference your XCMG machine’s BOM number to the exact ZF parts required.
• Supply Chain Dominance: Our strong inventory and position in the Chinese supply chain guarantee fast lead times and competitive pricing.

Conclusion: Your Expert Partner for XCMG/ZF Parts

Trust XiaoHang Machinery Co. for verified, high-quality ZF spares for your XCMG fleet.

Sourcing Parts for Liugong Loaders: The Liuzhou ZF (LZZF) Basicpower Difference

Introduction: The Liugong-ZF Partnership

Liugong is a world-class manufacturer that integrates ZF technology, often through the Liuzhou ZF (LZZF) joint venture. When servicing a Liugong machine, it is critical to understand that its “Basicpower” transmission may differ significantly from the German (Passau) version.

As a primary supplier based in China, Tianjin XiaoHang Construction Machinery Co., Ltd. has 20 years of direct experience with LZZF components and their specific sourcing requirements.

Section 1: The LZZF Technical Specification

EC4a Electronics and C-Clutches

When sourcing for Liugong, be aware of two key differences:

1. Electronics: LZZF Basicpower models typically use the EC4a TCU, where the control unit is integrated into the hydraulic valve cover. This is different from the EST37A (separate TCU) used on many Passau models.
2. Clutches: As detailed in our previous guide (Article 41), LZZF models often use C-Clutch nomenclature (CF, CG, CR, etc.) with different internal dimensions.

Section 2: The XiaoHang Advantage: Your Hub in China

We are Experts in Chinese OEM Specifications

XiaoHang Machinery Co. is not just a general parts supplier. We are specialists in the Chinese construction machinery market.

• Local Expertise: We have deep knowledge of the specific ZF BOMs used by Liugong.
• Cost & Speed: Our position within the Chinese manufacturing infrastructure gives us direct access to the LZZF supply chain, ensuring fast lead times and the most competitive pricing.

Conclusion: Your Expert Partner for Liugong/ZF Parts

Stop navigating complex international supply chains. Use the supplier that is at the source. Contact XiaoHang Machinery Co. for all your ZF spare parts needs for Liugong equipment.
