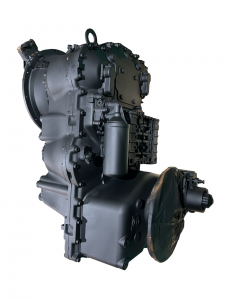

    Genuine ZF 4WG210 Transmission for John Deere 644H Wheel Loader

    Genuine ZF 4WG210 Transmission for John Deere 644H Wheel Loader

    Genuine ZF 4WG210 Transmission for John Deere 644H Wheel Loader

    Material Number: 4657.054.016 | Application: John Deere 644H | Condition: New / Genuine

    Original Drivetrain Solutions for Your John Deere Fleet.

    You are viewing the official parts catalog for the ZF 4WG210 Transmission (configuration 4657.054.016), the heavy-duty 4-speed powershift transmission engineered for the John Deere 644H Wheel Loader. As an Authorized Service Dealer, Tianjin Xiaohang provides direct access to the full range of genuine maintenance and repair components.

    • ✅ Guaranteed Fitment: Specifically calibrated for John Deere 644H (16.4 Ton) with John Deere Engine (147 KW).

    • ✅ Critical Spares In Stock: From the Hydraulic Pump 0501.214.895 to the Inductive Sensors 0501.209.719.

    • ✅ Global Fast Track: Immediate dispatch via DHL/FedEx/Air Freight to support your heavy equipment operations worldwide.

    2. Technical Specifications (John Deere Spec)



    Data verified from ZF Parts List 4657.054.016.

    🛠️ ZF 4WG210 Technical Data



    Feature Specification
    Transmission Type ZF 4 WG 210 (4-Speed)
    Control System EST-37 (24 Volt)
    Input Torque 1150 Nm @ 1100 RPM
    Engine Connection Direct Mounted to John Deere Engine
    Oil Capacity Approx. 27 Litres (Grade: TE-ML 03)
    Torque Converter 34 H 052 (Stall Torque Ratio: 2.813)
    Vehicle Weight 16,400 kg (Empty)

    Gear Ratios (4 Forward / 3 Reverse):

    • 1st Gear: 3.632 / 3.444

    • 2nd Gear: 2.183 / 2.071

    • 3rd Gear: 1.072 / 1.017

    • 4th Gear: 0.636 / (N/A)

    3. Critical Spare Parts Catalog



    We stock the complete breakdown for Material No. 4657.054.016. Below are the specific parts for this John Deere configuration:

    ⚡ Electrical Control & Sensors



    Note: This model operates on a 24 Volt system.

    • Inductive Speed Sensor: 0501.209.719 (Qty 3 used: Turbine, Intermediate, Engine Speed).

    • Speed Transmitter: 0501.317.949 (Output Speed).

    • Solenoid Valve (Pressure Regulator): 0501.314.770 (Qty 6 used).

    • Temperature Sensor: 0501.322.533.

    • Wiring Harness: 4656.206.006.

    🛢️ Hydraulic System & Filtration



    • Transmission Filter (Internal): 0501.321.521 (Located in Housing).

    • Fine Filter (Canister): 0750.131.060 (Pos 30 in Filter Group 4656.138.005).

    • Pressure Oil Pump: 0501.214.895 (Includes Shaft Seal 0634.311.837).

    • Emergency Steering Pump: 4656.137.004 (Cover 4656.337.005).

    ⚙️ Driveline Components



    • Torque Converter: 4168.034.113 (Type 34 H 052).

    • Input Shaft: 4657.302.005 (Z=54).

    • Output Flange: 0501.321.242 (Z=32, Type 1610).

    • Input Flange: 4642.303.059 (Z=34, Type 1550).

    • Housing: 4657.301.027 (Front) & 4657.201.012 (Rear).

    (Need Clutch Packs or Seal Kits? We have the full breakdown. Send us the Position Number from your manual.)

    4. Why Choose Tianjin Xiaohang



    🏆 Your Authorized Partner for John Deere Drivetrains



    The ZF 4WG210 used in John Deere 644H loaders (Material 4657.054.016) is a high-torque unit with specific 24V electronics and sensor configurations. Using incorrect 12V parts or generic sensors will cause immediate system failure.

    1. Voltage Verification: We ensure you receive the correct 24V Solenoids (0501.314.770) and sensors compatible with your John Deere electrical system.

    2. Diagram Support: Our engineers have access to the original Wiring Diagram (6029 700 927) to help troubleshoot shifting issues.

    3. One-Stop Sourcing: From the Range Selector (6006 630 023) to the specific Suction Tube (0501.218.764), we supply everything needed for a complete overhaul.

    5. Frequently Asked Questions (FAQ)



    Q: My John Deere 644H has a transmission overheating issue. What should I check?

    A: Check the Temperature Sensor 0501.322.533 for accurate readings and inspect the Filter 0501.321.521 for clogging. We stock both for immediate dispatch.

    Q: How many speed sensors does this transmission use?

    A: This specific model uses 3 Inductive Sensors (0501.209.719) for engine, turbine, and intermediate speed, plus 1 Speed Transmitter (0501.317.949) for output speed.

    Q: Is the torque converter included in the rebuild kit?

    A: No, the Torque Converter (4168.034.113) is sold separately. However, we can supply it along with the seal kit 4657.298.007 for a complete overhaul.
