Machine Troubleshooting: My ZF 4BP230 Has No Drive. Where Do I Start? (Pump, Solenoid, or Clutch?)

Introduction: A High-Urgency Diagnostic Guide

One of the most stressful field scenarios is a machine that “won’t move.” A ZF 4BP230 with a “No Drive” or “No Gear Engagement” condition can be caused by several issues. Starting your diagnosis in the wrong place wastes time and money.

As a 20-year transmission repair expert, Tianjin XiaoHang Construction Machinery Co., Ltd. provides this logical diagnostic flow to help technicians quickly find the root cause.

Section 1: Step 1 – Check the Hydraulic Heart (The Pump)

Is There Pressure?

Before you blame the clutches, check the system’s lifeblood. The 4BP230 requires 16+2 bar of main system pressure to function.

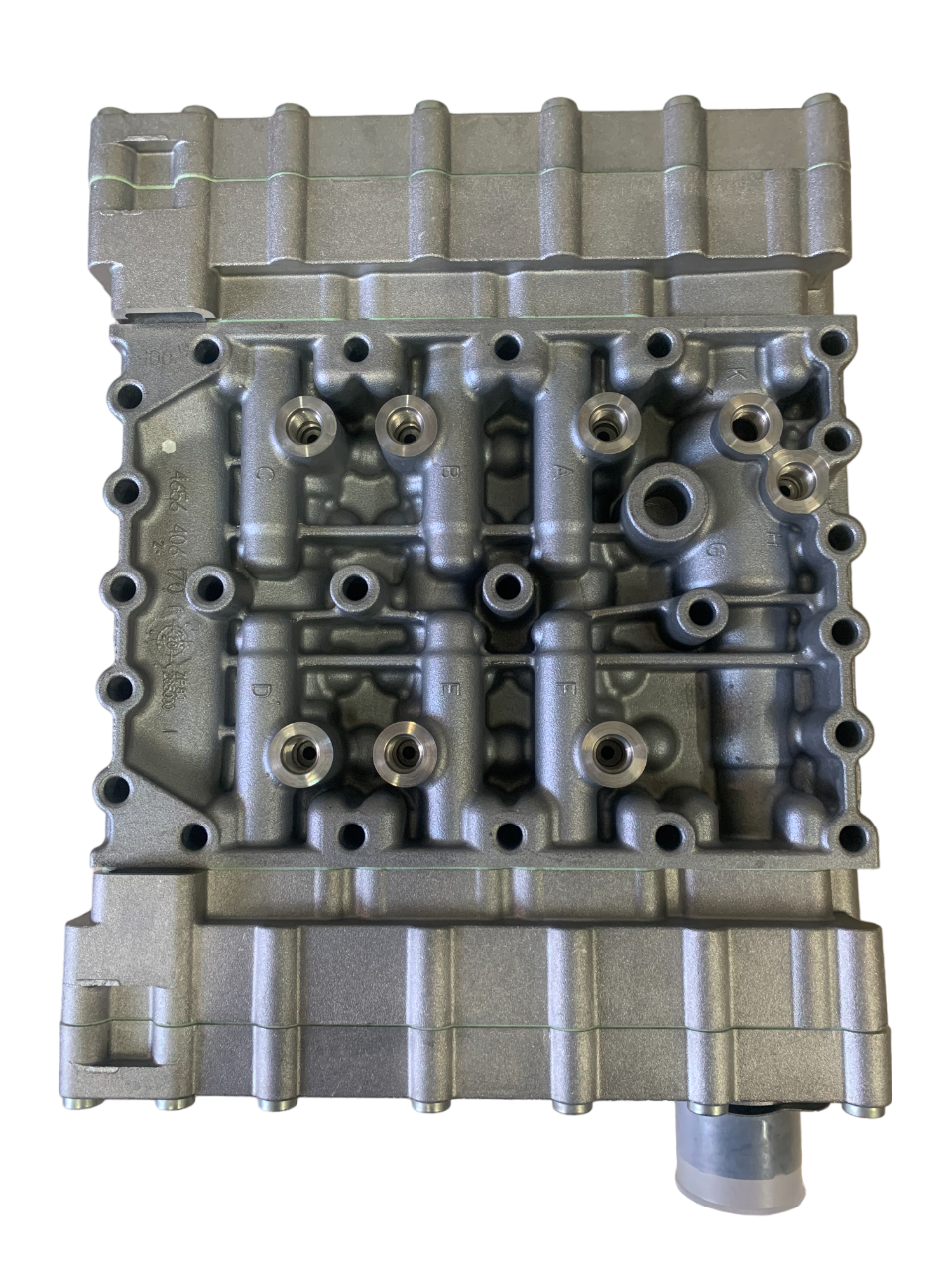

• Action: Connect a gauge to the main pressure Test Point [K] (M10x1) on the control valve body.
• Result (A): If pressure is low or zero, your problem is likely the Oil Pump (e.g., 0750.109.325), a clogged suction filter, or low oil.
• Result (B): If pressure is 16+2 bar, the pump is working. Move to Step 2.

Section 2: Step 2 – Check the Electronic Brain (Solenoids & TCU)

Is the System Commanding the Shift?

If pressure is good, the TCU may not be sending the signal, or the solenoid isn’t acting on it.

• Action 1: Check for fault codes. A sensor fault (like 3E) can stop shifts.
• Action 2: Check the proportional solenoids (Y1-Y6). Disconnect the solenoid for the problem gear and check its resistance. It should be 19 $\Omega$ (Ohms).
• Result: If the resistance is open or shorted, the solenoid is dead.

Section 3: Step 3 – Check the Mechanical Muscle (The Clutch)

Is the Clutch Pack Itself Worn Out?

If pressure is good and electronics are working, the problem is mechanical.

• Action: This is likely a “B-Hex” slippage fault (B1-B6).
• Result: The friction discs inside the clutch pack (e.g., K1 or KV) are worn out and can no longer hold the torque. This requires a full clutch repair kit.

Conclusion: From Diagnosis to Delivery, Fast

Tianjin XiaoHang Construction Machinery Co., Ltd. supports you at every step. We can help you diagnose the fault and have the replacement part—whether it’s the Oil Pump, a 19 $\Omega$ Solenoid, or a Clutch Repair Kit—in stock and ready for fast delivery from our China-based inventory.
